英特尔LGA 2066 ATX主板配备LiveDash OLED, DDR4 4133MHz, 802.11ad Wi-Fi, M.2散热片, U.2, 双M.2,SATA 6Gb/s,及前置USB 3.1 Gen 2接口
  • LiveDash OLED系统状态显示屏: 可显示系统温度, CPU频率, 风扇转速,甚至定义你的标识。
  • 可编程RGB灯带接针:可自行定义每颗LED不同颜色变化, 并通过Aura Sync和板端效果同步。
  • M.2 散热片:有效降温, 提供更快更稳的传输速度。
  • 5重优化:全系统优化, 提供更优超频与散热性能
  • 第4代智能风扇:全面掌控风扇及水泵效能, 酷冷你的系统。
  • 新一代功能:2x2 802.11ad Wi-Fi , 雷电 3小卡, U.2, 双M.2 及前置 USB 3.1 Gen 2 接口
Win 11

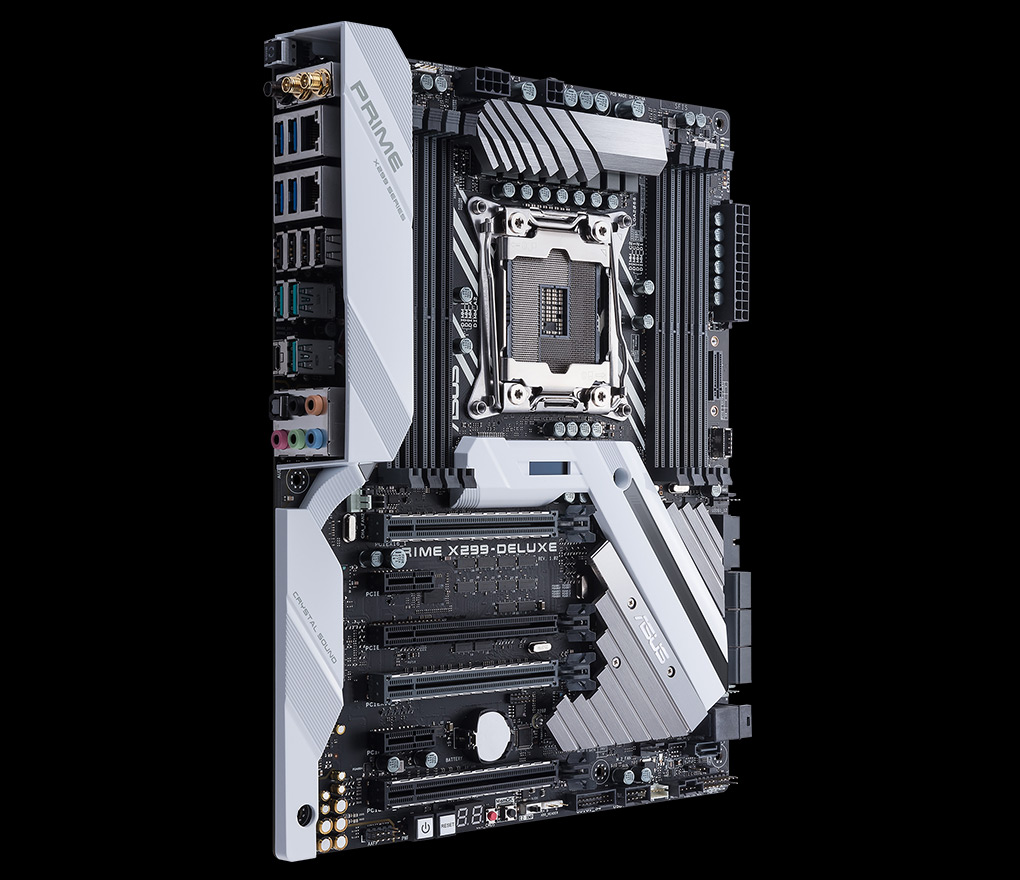

PRIME X299-DELUXE

1 BIOS Flashback® button

2 802/11ad(WiGig)

3 802.11ac 2x2
Dual-Band Wi-Fi

4 Dual Intel® LAN

5 3 x USB 3.1 Gen 2
Type-A Ports

6 1 x USB 3.1 Gen 2
Type-C Port

7 8 CH Audio with DTS Support

8 4 x PCIe 3.0 (GEN3)
2-Way/3-Way SLI & CFX Support

9
Crystal Sound 3
  • Power pre-regulator
  • Internal audio ampilier
  • De-pop circuit
  • Audio amplifer
  • Separate layers for left/right track
  • Premium Japan-made audio capacitors

10 DIGI+ Power Control

11 Intel® LGA 2066 Socket

12 DDR4 4133(O.C.) Support

13 M.2 Slot

14 ASUS LiveDash

15 USB 3.1 Gen 2 Front-Panel Connector

16 ASUS SafeSlot

17 M.2 Heatsink

18 U.2 Port

19 Addressable RGB LED strip header

Prime

ASUS Prime X299-Deluxe is the ATX motherboard that's been expertly engineered for professional content creators and power users who work hard by day and play harder by night. This powerful, innovative board puts a friendly face on advanced enthusiast controls, enabling you to maximize performance, cooling and personalization with ease. So, if you live to create, to explore, to enjoy and to push the boundaries, look no further than Prime X299-Deluxe.

Tune it your way

5-Way Optimization

One-click overclock and cooling, done!

One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.

Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.

All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.

i9-7900X
O.C.
4.4G*
Default
3.3G
CPU : Intel LGA 2066 i9-7900X | Motherboard : Prime X299-Deluxe | DRAM : G.Skill F4-3200C16Q-16GRKD | Power : Corsair AX1500i | Water-cooling : Corsair H115i
*Overclocked by using ‘specific core' tuning.
i7-7740X
O.C.
5.0G
Default
4.3G
CPU : Intel LGA 2066 i7-7740X | Motherboard : Prime X299-Deluxe | DRAM : G.Skill F4-3200C16Q-16GRKD | Power : Corsair AX1500i | Water-cooling : Corsair H115i
CPU performance boost

Unleash your PC's full performance with the ASUS AI Suite 3 utility. A TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

All-round energy efficiency

With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible cooling controls for air or liquid

With Prime X299-Deluxe you have comprehensive control over fans, water pumps and even all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

Precise digital power control

Digi+ delivers real-time control over voltage droop, switching frequency and power -efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Optimize per-core performance for every app

Intel's latest processors feature per-core tuning, and the ASUS Turbo Core app makes use of this feature by enabling you to assign applications to specific processor cores, allowing you to prioritize compute power where it's needed most.

Cooler by design

Prime X299-Deluxe features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS:

Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI.

A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

A dedicated PWM/DC header for self-contained water-cooling setups.

Every onboard header supports auto-detection of PWM or DC fans.

Includes three additional DC or PWM fan headers, plus three thermal-probe headers.

A dedicated integrated circuit that protects each fan header from over-temperature and over-current.

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

EZ Tuning Wizard Quickly apply a CPU overclock to improve system performance, or configure a RAID array for faster data retrieval and backups.

My Favorites Quickly discover tuning options and add preferred tools to the list.

Learn more
EZ Mode

Intuitive graphical fan control: Fine-tune individual fans simply by dragging a curve with the mouse.

EZ XMP: Improve your DRAM performance with a click.

SATA Information: Displays SATA port details so you can easily recognize drives.

Fast Clock Adjustment: Use mouse controls to change the time and date.

Advanced Mode

GPU POST: Provides recommendations for multi-VGA configurations and detailed information for select ASUS graphics cards.

Secure Erase: Restores your SSDs to factory-fresh condition.

Last Modified Log: Track last change and save preferred profiles onto a USB drive.

SATA Port Renaming: Rename SATA ports for easy identification.

Make your memory go faster

With optimized trace paths for time-aligned signaling and minimal crosstalk, Third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4133 MHz and beyond.

CPU : Intel LGA 2066 i9-7900X | Motherboard : Prime X299-Deluxe |
DRAM : G.Skill F4-3200C16Q-16GRKD | Power : Corsair AX1500i | Water-cooling : Corsair H115i

OC design- ASUS PRO Clock II technology

A dedicated base-clock generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control, providing the flexibility to extract every ounce of performance from Intel® Core™ X-series processors.

BCLK Range
OC
470MHz
Default
100MHz
*BCLK overclocking range will vary according to CPU capabilities, cooling, motherboard support and tuning options.
CPU : Intel LGA 2066 i7-7740X | Motherboard : Prime X299-Deluxe | DRAM : G.Skill F4-3200C16Q-16GRKD | Power : Corsair AX1500i | Water-cooling : Corsair H115i
Learn more
Connect everything, ultra-fast

M.2

Speed up with onboard M.2 up to 32Gbps

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It is the perfect choice for an operating system or application drive, providing fast access to data.

M.2 heatsink

Keep your SSD cooler

Prime X299-Deluxe has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C — and that means optimal storage performance and improved SSD longevity.

VROC

Upgrade your RAID

Unleash the Prime X299-Deluxe Virtual RAID on CPU (VROC) feature with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives — for a total bandwidth of up to 128Gbps. With VROC, you can utilize CPU PCIe lanes to configure a bootable RAID array, eliminating traditional DMI bottlenecks, so that storage transfers aren't held back by other traffic.

*ASUS Hyper M.2 X16 Card available separately for purchase.

U.2 connector

Join the NVMe revolution

The revolutionary specification that lets your SSDs scream at top speed. Just attach your chosen drive to with plug-and-play ease to experience data-transfer speeds of up to 32Gbps — and free up a PCIe slot for another expansion card.

Intel Optane memory

Intel Optane memory ready

Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime X299-Deluxe. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

USB 3.1 Gen 2 front-panel connector

Future-proof connectivity

Prime X299-Deluxe's front panel USB 3.1 connector is ready for next-gen PC cases and devices.

USB 3.1 Gen 2 Type-A & Type-C

Ultimate-speed 10Gbps with USB 3.1 onboard

With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

ThunderboltEX 3 Card

Experience blistering ThunderboltTM 3 speeds and any-way-up connectivity

ASUS ThunderboltEX 3 is an Intel-certified Thunderbolt™ 3 add-on card included with the Prime X299-Deluxe to enable breathtaking bi-directional speeds of up to 40Gbps through a single cable — up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices; utilizes a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices; and supports the USB Power Delivery specification for fast, high-power charging of up to 36W.

802.11ad Wi-Fi

Fastest onboard Wi-Fi up to 4.6 Gbps

Prime X299-Deluxe is engineered with the very latest 802.11ad (WiGig) Wi-Fi* for ultrafast, lag–free wireless connections of up to 4.6Gbps**, delivering smooth streaming of 4K UHD video and faster, slicker VR experiences!

* Availability of 802.11ad (WiGig) varies by region. Check with your local ASUS representative for more details.
** Actual speed varies, and depends on networking conditions.

802.11ad
4.6Gbps
802.11ac
1.3Gbps

Dual Intel Ethernet

More throughput, less CPU usage and great gaming experiences

Prime X299-Deluxe features the latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Lower CPU workload
High TCP & UDP throughput
Learn more

LANGuard

Pumped-up throughput, 2.5X higher surge tolerance

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

Turbo LAN

Network-optimization software for customizable packet prioritization

Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface, and reduces network lag.

Step up to multi-GPU graphics

Multi-GPU support

With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, Prime X299-Deluxe motherboard enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond.

SafeSlot

Protect your Graphics Card Investment

SafeSlot* is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

*Patent pending
Upgrade to unrivalled audio

Outstanding audio

Realtek codec and unique design features for pristine, powerful audio

Prime X299-Deluxe utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts gain to ensure the optimal volume range for your headphones.

DTS Headphone:XTM Surround sound, to go

Immersive 3D surround-sound technology provides incredible audio experiences.

Crystal Sound 3

Flawless audio that makes you part of the game

Power pre-regulator

Reduces power-input noise to ensure consistent performance.

Audio shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate layer for left and right tracks

Ensures minimal crosstalk between audio paths.

Integrated amplifier

Capable of driving high-impedance headphones, without rolling-off high or low frequencies.

De-pop circuit

Reduces start-up popping noise to all audio outputs.

Premium Japanese-made audio capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

Make it your own

LiveDash

See system info at a glance

Prime X299-Deluxe includes LiveDash, a built-in OLED dashboard that displays custom information such as system temperatures, CPU frequency, fan speed and error messages — so everything you need to know is available at a glance.

Addressable RGB LED strip header

Control every LED

Prime X299-Deluxe now has a dedicated addressable RGB  header, suitable for connecting to lighting strips, fans, and compatible PC cases. Our Aura software contains an array of effects for addressable gear, and the Aura SDK takes things to the next level, allowing developers to control each LED individually - unleashing infinite lighting possibilities.

Aura Sync

Outshine your competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Static
Breathing
Strobing
Rainbow
Color Cycle
Comet
Flash &
dash
Wave
Glowing
Yo Yo
Starry
Night
Music
effect
CPU
temperature

* The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 2A (12V). For maximum brightness, strip length should not exceed 2m.
*The addressable RGB header supports WS2812B addressable RGB LED strips (5V/Data/Ground), with a max power rating of 3A (5V) and a max of 60 LEDs.
**RGB and Addressable RGB LED Extension cables are included. LED Strips and Aura Compatible devices are sold separately.

Exclusive 3D mount for easy installation

Make it your own

Dedicated 3D mounts on the motherboard makes fitting 3D-printed parts easy. Using the same screws as M.2 drives and standard motherboard mounting holes, you can easily add nameplates and cable covers.

M.2 fan holder A fan mount for M.2 drives to help prevent thermal throttling.

Learn more

3D-printable accessories

As system parts are visible in custom PC builds, make yours stand out from the competition with 3D-printed accessories.

Graphics card holder Prevent sag by providing support for heavy graphics cards.

2-Way SLI HB Bridge cover Clip the cover onto the SLI HB Bridge to add style to your build. Multiple form factors — EATX, ATX and mATX — are available.

Fan grill Make your cooling a little cooler.

Cable combs Keep cables organized with the multi-connector design. 3D design files are available for 24-pin, 8-pin, 8 + 6-pin, 6-pin and 4-pin PSU connectors.

Guide to start 3D printing

Download Select the 3D source files you want to download.

Download

Personalize Adjust size or shape, add text or change other attributes.

Watch tutorial

Print Use your own printer, or visit a local vendor or ASUS store with Shapeways.

Shapeways

Setup Easily assemble and fit your 3D-printed parts using M.2 nuts or existing case mounts.

Watch tutorial

Intel® Core™ X-series processors for LGA 2066 socket Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes.
Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.

Intel X299 chipset The Intel X299 chipset supports LGA 2066-socket Intel Core X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.1 Gen 1 ports, 8 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.
